Overview

  • Engine 392 / 6.4L MOPAR Gen III HEMI SRT-8 / V8

    • 475 lb.-ft. of torque

    • 392 cubic inches displacement

    • 94.6mm stroke x 103.9mm bore

    • Peak RPM 6400

    • Aluminum, HEMIspherical chamber cylinder heads

    • Cast Iron Block with 4 Bolt Powder Metal Caps

  • 485 Horsepower

  • Tremec TR-6060 6-Speed Manual

    The Tremec T6060 is a 6-speed manual transmission known for its use in high-performance and sports cars. Manufactured by Tremec, it features robust construction, high torque capacity, and a variety of gear ratios for acceleration and top-end speed. The transmission is often made of aluminum to reduce weight, has synchronizers for smooth shifting, and may offer aftermarket support for upgrades. Regular maintenance, including fluid checks and addressing issues promptly, is essential for optimal performance. For the latest details, it's recommended to check Tremec's latest information or the specific documentation from the vehicle manufacturer.

    • transmission HEMI compatible

    • 4-wheel drive compatible

    • McLeod RXT hydraulic clutch

  • 20.3 Gal Premium Unleaded

  • 4 Wheel Drive / Advance Adapters Atlas-II

    The solid, one-piece case design is manufactured from 356-T6 heat-treated aluminum alloy. This material is also used for the structural access cover and all other exterior components. The massive gears are helical cut and synchro-equipped for quiet performance and "shift-on-the-fly" capability. These gears are supported by needle bearing elements, precision matched to strong 8620 shafts. The ruggedly designed output shafts are amply supported by large taper bearing sets.

  • High Range 1:1 / Low Range 1:3.4

  • Towing Capacity 5,000 Lbs

  • 5,500 LBS

BUILD INFORMATION

  • June 2025

  • Vigilante, Johnson City Texas

  • Empire Blue

Engine

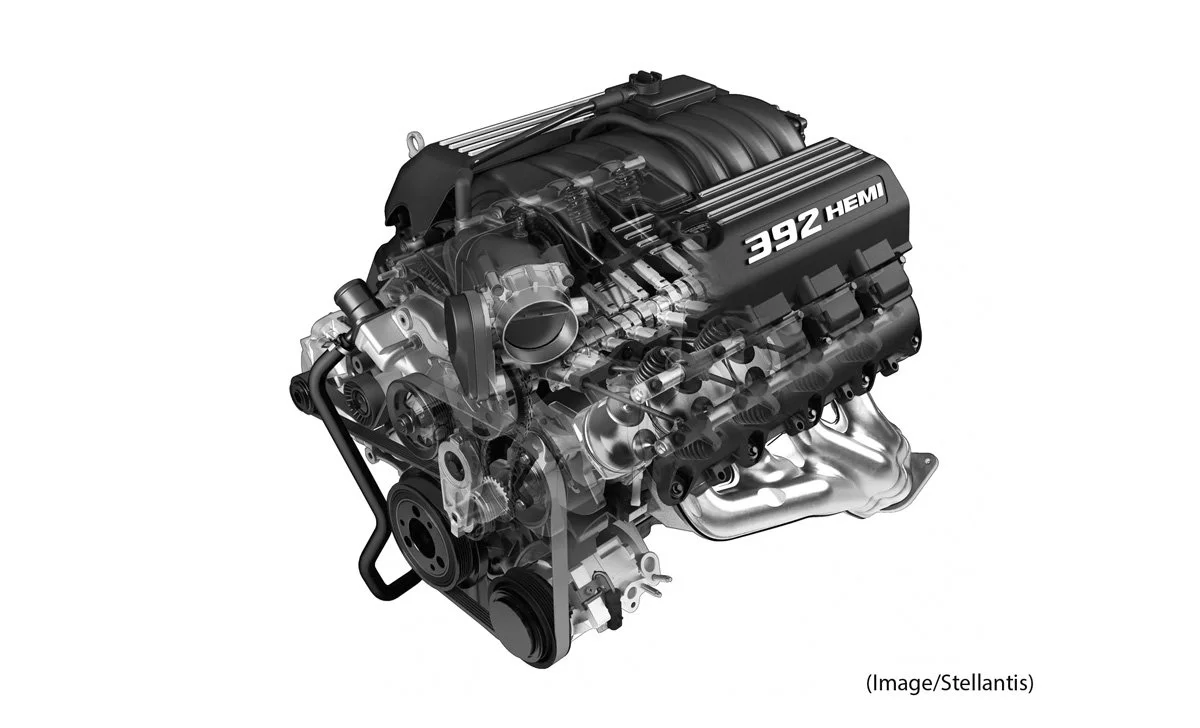

MOPAR Gen III HEMI 392/6.4L Crate engine

  • 485 horsepower

  • 475 lb.-ft. of torque

  • 392 cubic inches displacement

  • 94.6mm stroke x 103.9mm bore

  • Peak RPM 6400

  • Aluminum, HEMIspherical chamber cylinder heads

  • Cast Iron Block with 4 Bolt Powder Metal Caps

VIGILANTE Jeep engine labeled 392 HEMI with metallic and black components, including belts, pulleys, and exhaust pipes.

Break In Period

1500 Miles

Oil Capacity / Type

Penzoil Synthetic
8 Quarts / 0W50

Air Filter

K&N

Coolant

MOPAR Antifreeze / Coolant
50/50 Prediluted
10 Year
Temp Range -34° to 256°

Brake Fluid

AMSOIL 100% Synthetic
Dot 3&4

Oil Change Interval

6,000 Miles

Transmission

TREMEC TR-6060

  • 6 speed manual

  • HEMI compatible

  • 4-wheel drive compatible

  • McLeod RXT hydraulic clutch

VIGILANTE Jeep mechanical transmission component, likely part of a vehicle's drivetrain, shown in black and white.

Axles

The obvious choice are the DANA 60 and DANA 44 axles from Currie Enterprises: These new axles are the standard of reference in the axles’ market for both their sturdiness and their reliability.

Gear Oil

Brand RGO Racing Gear Oil
Oil type SAE 85W-140
Capacity 4 Quarts
Range 20,000 Miles
VIGILANTE Jeep Automotive axles front

Front

Currie Enterprises Dana-44 front axle
4.11 gears
6-piston Baer disc brakes

Automotive steering column with mounting brackets and electronic components.

Rear

Currie Enterprises Dana-60 rear axle
4.11 gears
6 piston Baer disc brakes

Transfer Case

For the VIGILANTE line, we chose to maintain the four-wheel-drive mode of operation. That’s why, to best distribute the high power of the HEMI engine, we selected an Advance Adapters Atlas-II type of reinforced transfer case.

Gear Oil

Brand Redline Oil MT-90
Oil type SAE 75W-90 GL-4
Capacity 2 Quarts
Break in Range 500 Miles
Oil Changes 10 - 15K Miles

Engage from stop

  1. Lock front hubs

  2. Turn off car to shift into gear

  3. Engage REAR before FRONT

  4. Slide REAR shifter into HI or LO

  5. *Slide FRONT shifter into matching gear

Engage while moving

  1. Lock front hubs

  2. Slow 2-5 MPH (10 MPH MAX)

  3. Apply clutch or shift transmission to N

  4. Engage REAR before FRONT

  5. Gently push shifter until it slides into gear

  6. *Slide FRONT shifter into matching gear

4x4 HI

Ignition switch diagram showing positions for Off, On, and Lock with lines indicating connections for front and rear components.

More information about transfer case here on provider website

4x4 LOW

Diagram of a vehicle's gear shift with positions marked for front and rear, including high (H), neutral (N), and low (L) gear settings.

Front crawl

Labeled electrical wiring diagram with front and rear sections, showing points H, N, and L connected by dots.

Chassis & Suspension

Custom Vigilante Chassis

  • Based on a complete 3D scan of vehicle, this CAD designed frame offers unique ride quality with no body modifications

  • Four wheel coil-over suspension, with triangulated four link rear, and Panhard front linkage.

  • 5x2.5” frame rails

  • Powder coated

A dirt bike rear suspension shock absorber with black and silver components.

Shock

Factory Race Series 2.5 Coil-Over Reservoir Shock (Pair) - 883-02-121

A metallic coil spring standing upright against a plain white background.

Coil

Eibach Coil 450 (1400.250.0450S)

A partially assembled vehicle chassis with suspension system on a wooden work table in a workshop, with a worker in the background and organized storage shelves.
Metal coil spring against a white background

Helper

Eibach Helper Spring
EIB-HELPER250
4in FL x 2.5in

A black camera lens filter ring.

Spacer

EIB-SPACER250
Helper/Tender, Spacer,
2.50 in. ID, Black Ano.

Cooling System

THE PWR BRAND IS SYNONYMOUS WITH RACING.

Since 1988 winning teams in NASCAR, IndyCar, NHRA, and IMSA SportsCar racing have trusted PWR to provide the best cooling solutions for their equipment.

Black and white photo of a car engine bay, featuring an Edelbrock VORTECH supercharger, intercooler, various hoses, and engine components.

High density PWR aluminum radiator

Close-up of a car engine showcasing a cooling fan with a protective shroud, engine components, and attached hoses.

850W Vintage Air brushless electric fan.

Exhaust

MOPAR cast iron high flow exhaust manifolds mated to a combinantion of BORLA and MAGNAFLOW dual in-out muffler with mandrel bent stainless steel dual exhaust system.

Underneath a vehicle, showing a BBS exhaust muffler and part of the suspension system with a disc brake.

Stainless steel Borla Muffler

View of the underside of a lifted off-road vehicle in a garage or workshop, showing suspension, exhaust system, and chassis.

Stainless steel Exhaust Pipe 3”

Steering System

BORGESON Street and Peformance Series
This all-new power steering box has a quick 12.7:1 ratio with firm modern steering feel.

  • Input Shaft: 3/4″-30 Spline

  • Pitman Shaft: 1-1/4″ GM with 32 Splines and 4 Master Splines

  • Pressure Port: M18 X 1.5 O-Ring

  • Return Port: M16 X 1.5 O-Ring

  • Maximum Pressure: 1450 PSI Maximum Operating Pressure, 1100-1250 Optimal

  • Flow Rate: 2.5-3.0 GPM Flow Rate Recommended

Black hydraulic pump with multiple fittings and mounting points.

Fuel System

  • Vented 20 gallon custom built fuel tank

  • Powder-coated black stainless steel

  • Stainless steel system plumbing

  • Large and easily serviceable fuel filter

  • In-tank fuel pump

  • ATWOOD EPA-compliant fuel vapor filtering

NOTES

•The fuel sending unit is an inch off bottom of the fuel tank, therefore when you are on E there is still some fuel in the tank allowing you a reasonable distance to a gas station.

• Its normal to sense a fuel odor immediately after fueling.

• A charcoal canister has been added to the evaporative release line to mitigate fume escape.

Underbody view of an off-road vehicle showing large tires, suspension system, differential, and axles.

Safety

AC

Audio

A/C

Vintage Air Gen 5 Air Conditioner KIT ID: (471066) 1964 - 66 Ford Mustang

  • Electronically controlled system replaces the factory AC and Heating system

  • Rear AC and Heat vents are active while in the “VENT” setting only

A/C Airflow Control Positions

In your Super Wagoneer, the heating and air conditioning system has been fully modernized while preserving the iconic look of the original controls. The visible buttons and sliders maintain the classic design but are now connected to state-of-the-art electronic components.

Note: There is no separate button for air conditioning. Instead, A/C is managed automatically through the temperature control bar. Modern comfort, seamlessly integrated into a timeless interface.

A vintage car dashboard with a vertical row of controls, including a vent, floor, and defrost options, a slider with an arrow pointing downward, a red button labeled 'BLOWER,' and a round knob with settings for off, low, medium, and high.

Defrost Position

To clear the windshield, move the selector to the DEF position. In this mode, airflow is directed toward the windshield and side defogger vents. Use this setting in cold or humid conditions to quickly remove fog or frost.

Dashboard control panel with a graduated slide thermometer, toggle switches, and a red knob labeled "BLOWER" with an arrow pointing to it.

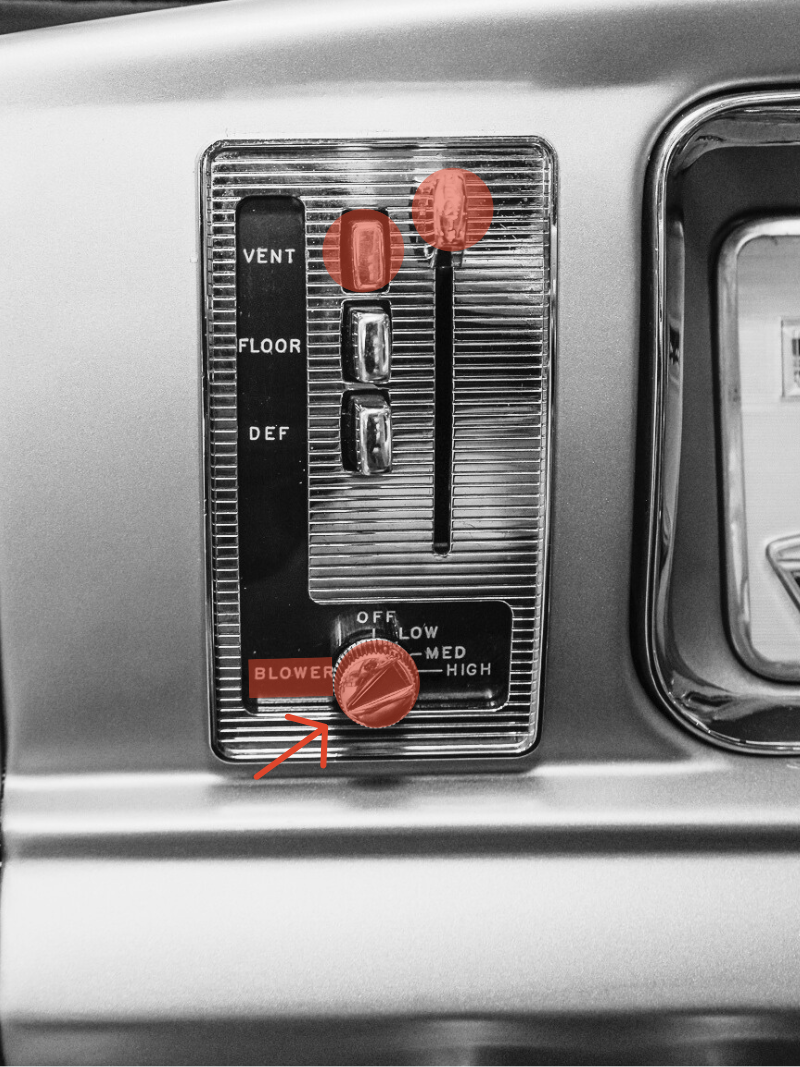

Dash Vent (Direct Ventilation) Position

For fresh air directed at the upper body, set the selector to the VENT position. This opens the dash vents, providing direct airflow to the cabin. Ideal for mild weather when cooling or heating is not required.

Close-up of vintage car dashboard controls, including a blower speed switch and vent and floor mode indicator.
Close-up of a vintage vehicle's control panel with a sliding temperature control, a red arrow pointing to a knob labeled 'BLOWER' in red, and other control switches, all set against a metallic background.

Footwell (Floor) Position

To warm your feet and lower body, place the selector in the FLOOR position. This directs air to the footwells. Recommended when heating is active and maximum comfort is needed during colder conditions.

Intermittent Wipers

Intermitent wipers have been added as a functional upgrade to this vehicle.

Setting the wipers happens with a series of twists of the wiper knob.

A black circle with a red arrow pointing clockwise, indicating rotation or refresh.
Circular loading indicator with a red arrow pointing clockwise
A circular progress indicator with a red arrow pointing clockwise
Illustration of two cycling pedals with red cleats.

1st click
Intermitent 8 Second wiper delay

2nd click
High Speed

Clickback to Position 1
Low (continuous) wiper speed

Click to Position 2 and back to 1 for 3 second wiper delay.

Close-up of a vintage car dashboard showing an air vent, control knobs, and switches labeled 'PARK', 'DRIVE', and 'TALL SAFE UP'.

Fire Extinguisher

E Brake

Roadside

Tailgate Glass

Electric Windows

Intermittent Wipers

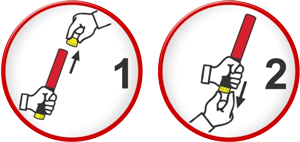

An ELEMENT Fire Extinguisher
is installed under the driver seat.

1: Twist off the bottom and

2: Use RED PAINT dot on the
bottom cap to strike black button on top & INGITE the fire extinguisher.

https://elementfire.com/products/element-e50

Step-by-step illustration of opening a bottle with a corkscrew, showing how to insert and twist the corkscrew into the cork.
Two-step fire safety instructions: first, pour a liquid into a fire extinguisher, then spray the extinguisher on a fire.
Inside a vehicle, there is a metal compartment between the seats containing a tube with the label 'ELEMENT.'

Fire Extinguisher

E Brake

Roadside

Tailgate Glass

Electric Windows

Intermittent Wipers

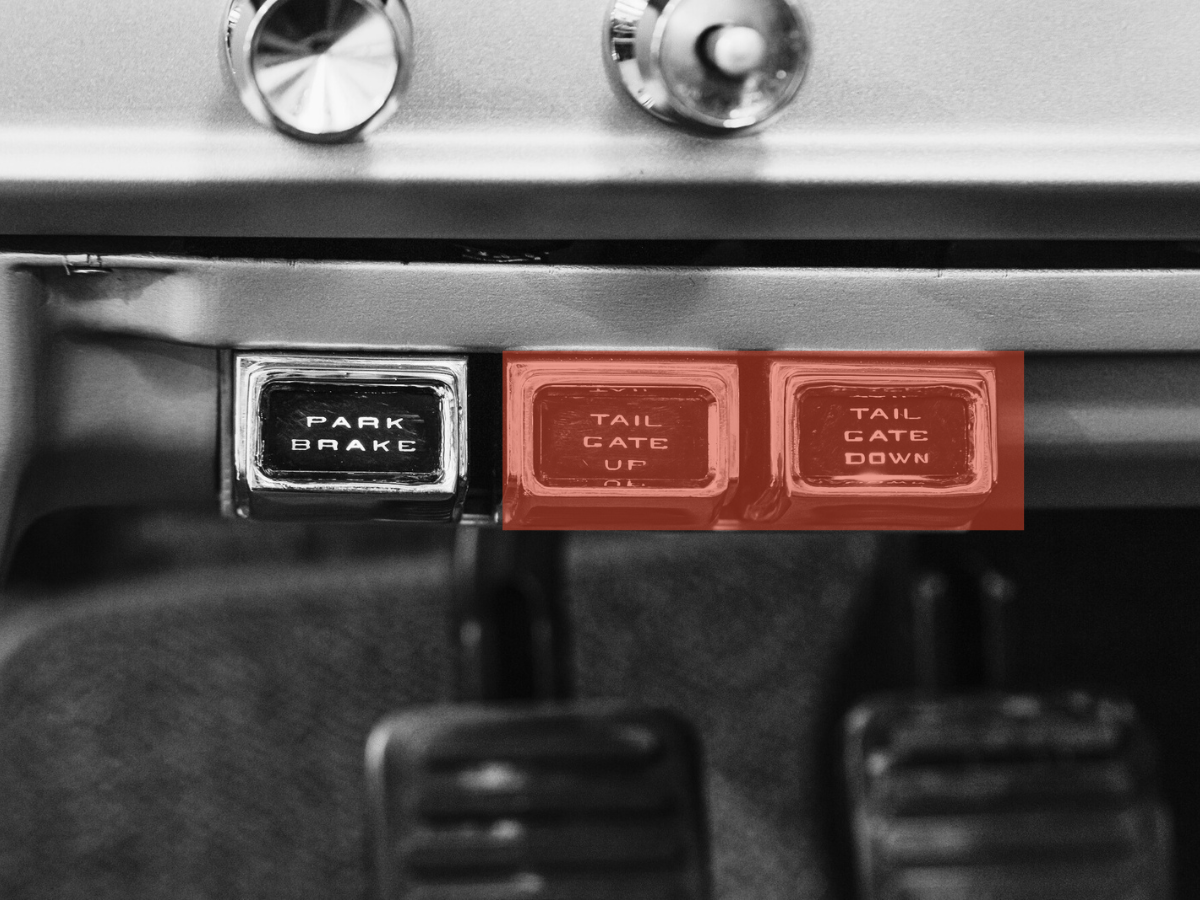

This car has a electronic brake system. In addition to using your PARKING BRAKE we suggest always curbing wheels and LEAVING CAR IN GEAR when parked to ensure maximum safety against rolling.

To operate the electronic brake, make sure that the key is in the ON or RUN position. The engagement and release require the system to be powered. This only happens if the key is in the ON or RUN position.

Only operate the system at a standstill. The Park Brake button under the light switch requires 6 seconds in orders to be fully engaged or disengaged. DO NOT turn the key to the OFF position while engaging or releasing the system as it will only partially engage.

A LED indicator is on your center console is there to provide a status of the Parking Brake.

Do Not Drive with the Parking Brake engaged. Doing so will require costly repair to replace parking brake drum.

Close-up of a car's dashboard with a prominent red 'Park Brake' button, next to other control switches, and an air vent with horizontal slats.

Fire Extinguisher

E Brake

Roadside

Tailgate Glass

Electric Windows

Intermittent Wipers

This car is not equipped with a spare tire.

We recommend subscribing to roadside assistance with your ensurer.

If your vehicle becomes dangerous to operate STOP DRIVING and have it TOWED ON A FLAT BED to service.

Stopping immediately can prevent costly repair. Wheel Replacement is available.

See TIRE Section

If something seems off,

PLEASE CONTACT VIGILANTE

Close-up of a tire and wheel on a vehicle, showing the tire branding 'BFGoodrich All-Terrain T/A' and a polished rim with a center cap.

Fire Extinguisher

E Brake

Roadside

Tailgate Glass

Electric Windows

Intermittent Wipers

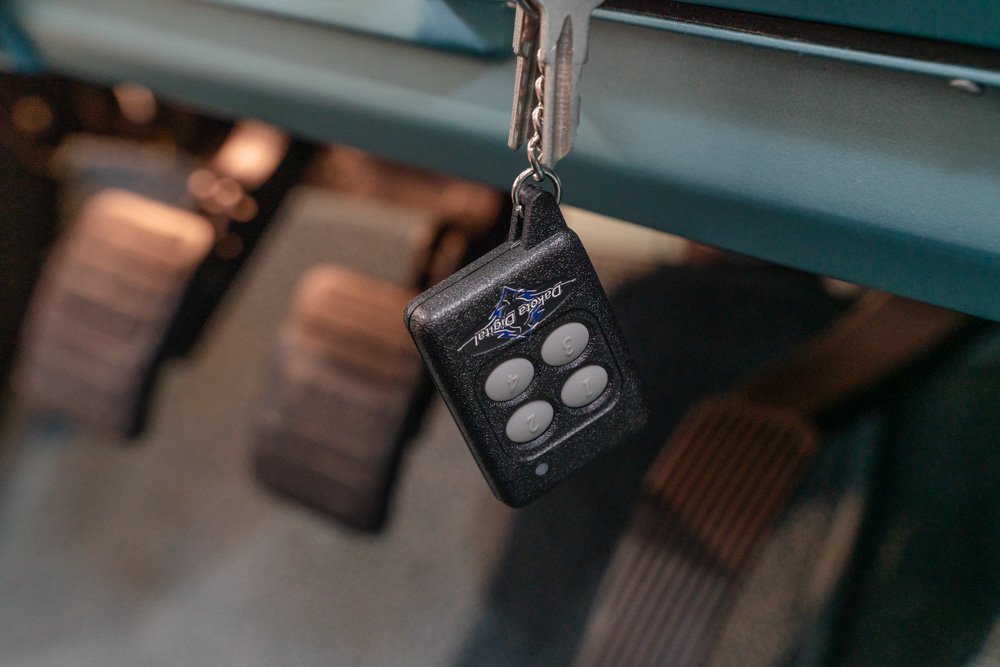

The tailgate glass can be operated by three switches.

The key does not have to be on to operate the tailgate glass.

- Interior Switch
- Tailgate Key
- Wireless Keyfob

Close-up of a control panel with a black button labeled 'Park Brake' and two red buttons labeled 'Tail Gate Up' and 'Tail Gate Down' in an industrial or transportation vehicle.
Close-up of a black and silver vintage alarm clock with a red Vigilante badge on the front.
A black remote control with four gray buttons hanging from a keychain attached to a metal clip, hanging from a surface above foot pedals.

Fire Extinguisher

E Brake

Roadside

Tailgate Glass

Electric Windows

Intermittent Wipers

Door glass is raised and lowered using an electric motor.

The classic crank has been converted to an electronic switch.

(!) Limit the pressure applied to the crank . Due to the nature of restored parts, they can suffer breakage under extreme pressure.

1. Push down to lower window
2. Pull up to raise window

Interior car door with two manual window crank handles labeled 1 and 2, used for rolling windows up and down.

Fire Extinguisher

E Brake

Roadside

Tailgate Glass

Electric Windows

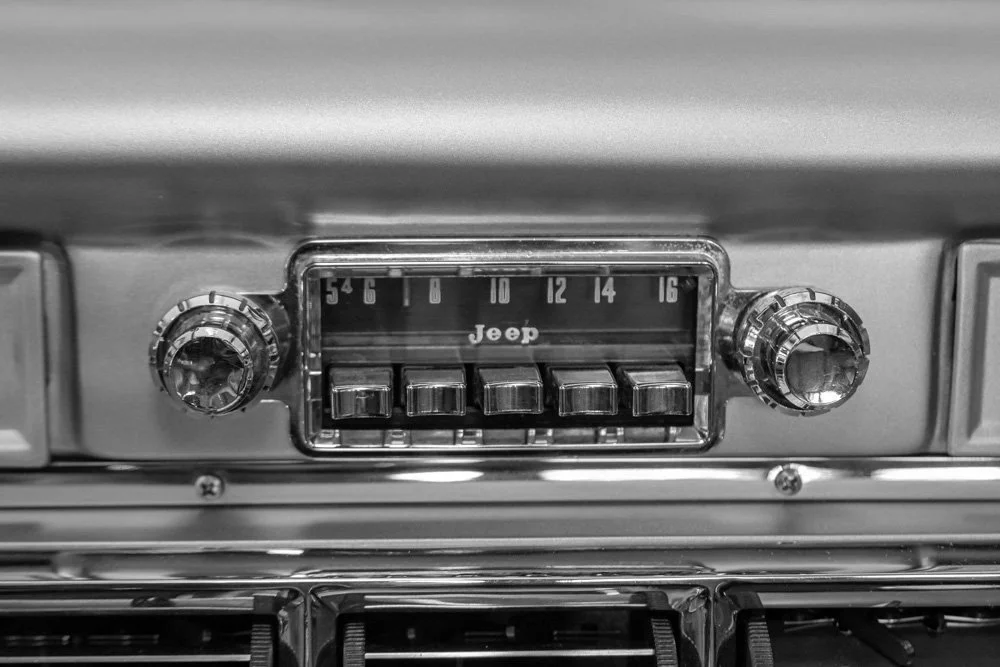

Radio

  • OEM JEEP radio Bluetooth and HD-radio
    integration

  • JL Audio C2-650x front speakers

  • AudioFrog GS 8” subwoofer-midrange rear speakers

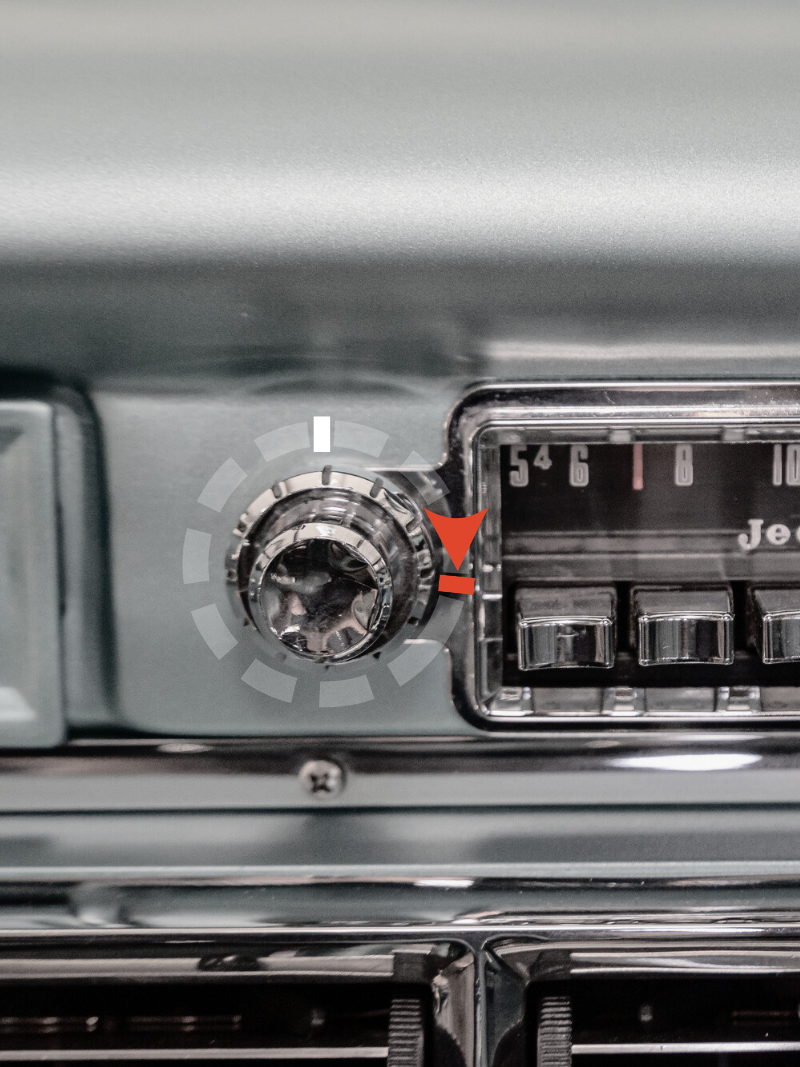

Your vehicle has been fitted with an upgraded original Jeep Radio.

This system included Bluetooth integration.
For in depth operating procedures, please refer to the Aurora Design FRM-3.0 Documentation.

QUICK GUIDE

Black and white photo of a vintage Jeep car radio with knobs on each side and push buttons below the dial.
Close-up of a vintage car radio and temperature control knob with red arrows pointing to the knob's setting.

PAIRING MODE

  • Twist Volume 2X to right

  • Select “Aurora Design BTU” on Bluetooth Device.

Close-up of a vintage car radio and control knob, with a red arrow pointing to the knob.

VOLUME

  • Select a mid-range stereo volume

  • Fine tune volume on bluetooth device

A close-up of a car radio and control knob with labels indicating 'Rewinds' on the left and 'Advances' on the right.

SCROLLING THROUGH SONGS (TUNING)

  • Turning the dial —> advances the song

  • Turning the dial <— rewinds the song

Amplifier

JL Audio XDM600/6 - 6 Channel Amplifier with Integrated DSP
Amplifier settings have been set based on our standards. You may require additional settings for your listening needs.

A black car amplifier with multiple input and output ports, including RCA and speaker connections.

Recommended Amplifier Setting Procedure

  1. Remove rear passenger speaker panel

  2. Remove amplifier cover

  3. Set radio to a strong FM station

  4. Choose a comfortable listening loudness

  5. Adjust amplifier to desired output setting

  6. Check setting with full range of Stereo volume

  7. Play Music on Bluetooth Source

  8. Make adjustment to Bluetooth volume using portable device

  9. When all sounds right, close amplifier and speaker panels

Car trunk with audio equipment including a subwoofer and an amplifier installed in the side panel.

Service

Fluids

Radiator Coolant Overflow Reservoir

1/3 Full

MOPAR Antifreeze / Coolant
50/50 Prediluted / 10 Year
Temp Range -34° to 256°

Clutch Reservoir

4/5 Full

AMSOIL
BRAKE FLUID
100% Synthetic
Dot 3&4

Transfer Case

2 QUARTS

Redline Oil MT-90
SAE 75W-90 GL-4
Break in 500 Mile Change
20k depending on application

Hydroboost / Steering Fluid

1 Inch from top

SWEPCO
POWER STEERING / HYDRAULIC OIL
FL-SWE715
SWEPCO715

Axles (Dana 44 /60)

1.6 QUARTS / 3 QUARTS

RGO RACING GEAR OIL - Synthetic
SAE 85W-140
Break in change / 500 Mile
20k depending on application

Engine Oil

7 QUARTS

Pennzoil Ultra Platinum
Full Synthetic
0W-40
6000 Mile Range

Brake Reservoir

4/5 Full

AMSOIL
BRAKE FLUID
100% Synthetic
Dot 3&4

Manual Transmission

3.65 QUARTS

TRANZILLA LUBE
Synchromesh Trans. Fluid - 150SM (Replaces PT# 12345349) - Suggested 1st Change 2000 Miles - Every 30K thereafter

Fuel

20 GALLONS

GASOLINE
Premium
91 Octane or better

FASTENER TORQUE SETTINGS

When it comes to fastening parts securely and safely, fastener torque settings play a crucial role. Fastener torque settings, also known as torque specifications, determine the clamping force applied to a screw, bolt or other fastener.

Close-up of a vehicle's front tire with rugged tread, featuring branding for BFGoodrich All-Terrain T/A tires and a vintage-style alloy wheel with a central hubcap.

Lug nut spec 80ft lbs

Close-up of mechanical components including pipes, bolts, and brackets in a machine or vehicle.

If suspension makes noise on acceleration or deceleration, tighten suspension bolts to max tightness with two wrenches

REPLACEABLE PARTS

Regularly replacing essential car parts offers numerous benefits, enhancing both performance and longevity. Timely changes, such as oil and air filters, contribute to an extended lifespan by preventing premature wear. Improved fuel efficiency is another perk, achieved through the replacement of filters, ensuring optimal combustion.

Black device with the word 'VIGILANTE' written on it.

Signature BAER 6 pistons
6 cross-bolts
Stainless steel pistons

Black Odyssey Extreme automotive battery with a gray top and label on the front in black and white.

GEL Battery
Odyssey Extreme AGM2
ODX-AGM34/78

A pair of modern, ventilated, silver brake rotors with black center hubs

Brakes
Drilled/slotted/ventilated 14” brake disc
HYDRATECH Hydroboost brake assistance
Wilwood master cylinder
Wilwood proportioning valve

Two pairs of black, semi-metallic brake pads with grooved surfaces for car braking system

Brake Pads
High-temperature resistance pads
BAER BvRAKES 6S/6R/XTR
Monoblock caliper replacement pads

Tires

BF Goodrich

All-Terrain T/A
Wheel Size: 17”x 8
Tire Size: 285/70 R17

Bead Balanced on VIGILANTE Signature Billet aluminum CNC machined slotted wheels

Pressure : 55psi

Close-up of the front part of a vintage green and blue VIGILANTE Jeep super Wagoneer with chrome details and Bigfoot tires, parked on a dirt road with trees and open landscape in the background.
Close-up of a vintage teal VIGILANTE Jeep vehicle parked near a river, with visible front grille, headlights, and Texas license plate.

NOTE: There is no spare tire included with this vehicle.

The fuel tank on our custom frame is located where the spare was originally located. If you experience a flat or blowout, please contact roadside assistance. Do not drive!

If a Vigilante wheel is damaged a replacement can be ordered. Replacement Cost is approximately $7,500. Each wheel is made to order and post processed by multiple vendors for various finish treatements. Please allow 6-8 weeks for delivery.

Body

Exterior

  • Original Jeep body, no reproduction panels

  • Media blasted to the bare metal
    Old-school sheet metal repair with minimal use of fillers

  • Aluminum/zinc metalizing rust protection process

  • PPG Primers, paint and clearcoat

  • Painted two-tone

  • Dynamat sound proofing

Yellow warning triangle with black border and exclamation mark in the center

If fuel drips - Immediately clean body

The clear coat paint we use for this restoration is sensitive to gas. If gas drips onto the paint and is left to sit, it will turn the clear coat yellow. There is no remedy or fix this issue.

If the clearcoat of your vehicle becomes yellowed due to fuel drips, the panel must be sanded and repainted.

Maintenance

A red bottle of CRC Brakleen brake parts cleaner with a black cap
A can of RV care rubber seal conditioner with a red cap and yellow and black label.
Bottle of Griot's Garage Fine Glass Polish with a red cap
Container of CRC White Lithium Grease with black cap and red label.
Bottle of GREYHOUND Leather 3-in-1 cleaner, conditioner, and protector with red cap
Side view of a teal vintage SUV parked indoors with trees visible through the large open door in the background.

No brake cleaner on wheels or paint

Keep brake cleaner and solvents off all painted surfaces. The wheels on this vehicle are polished, clear coated and painted after they are formed. Brake cleaner and other mineral solvents will cause the clear coat and paint to become cloudy.

Do not use abrasives on wheels. Abrasives will cause the clear coat to become cloudy or scratch the aluminum of the wheel.
*CRC Bräkleen

Maintain rubber seals

When possible we use all new rubber seals and gaskets. There are a mix of new and used seals on each Vigilante. Keep seals oiled using a seal restoration product or Vaseline.

*RV care Rubber

Glass

The glass on your vehicle is newly cut and tempered. Keep water from accumulating on the glass to keep it looking clear and prevent waterspots. If waterspots accumulate on glass, we recommend using Griot’s Fine Glass Polish.

*Griots fine Glass Polish

Lubricate Locks, Hinges & Latches

If locks & latches are not operting smoothly, lubricate them with a small amount of Lithium Grease.

*CRC White Lithium Grease

Leather

Moore & Giles quallity leather has been used to upholster the seats and interior panels of Vigilante Cars. Vigilante seats feature new springs, new foam, and new padding. We recommend the Griot’s Garage Leather 3-In-1 to maintain the leather.

*Griots Leather 3-1

  1. Roof Rack
    The original specifications and ratings are less than today’s standadards.

    Do not load above 100 lbs. or sharp rigid
    objects.

  2. Paint
    Glacier White
    CHR60:W (1960 - 1961), Chrysler, CHR60:W,CHA60:W, W
    Empire Blue
    CHE71:29 (1971-1972), Chevrolet, 29 , WA4077, G Metallic

  3. Mesh
    Original Super Wagoneer mesh restored and painted

  4. Filling Fuel
    The Fuel Filler neck is a hybrid design
    of new and vintage parts

    Fuel Octane 90+

    Trouble Filling : If you experience trouble while filling, 1. Slow the fuel delivery, 2.Rotate the filler handle 1 or 11 o’clock to help air flow

VIGILANTE Close-up of vintage off-road vehicle tire and wheel, with the vehicle painted green, on a gravel surface.
VIGILANTE A vintage green and white VIGILANTE Jeep Wagoneer parked indoors with trees and a mountainous landscape in a photograph behind it.
VIGILANTE Close-up of a vintage green car, showing its front grille, headlight, side mirror, and part of the windshield inside a garage.
VIGILANTE Close-up of the interior door panel of a vintage car, featuring manual window and door locks in a teal color.
Interior of a vintage green car showing dashboard, steering wheel, gear shift, and green leather seats.

Lights

  • Full LED warm-tone light.

  • Courtesy lights in ceiling and cargo area.

A vintage turquoise Jeep parked indoors with a Texas license plate.
Close-up of the rear side of a vintage teal Jeep SUV showing the taillight, badge reading 'Jeep' and 'Four Wheel Drive', and large off-road tire.

Rearview Mirrors

  • Cut to order premium Aluminum Mirrors

  • Chrome plated

  • Custom Vigilante Logo

Close-up of a vintage light blue car's side mirror and part of the window frame with chrome detailing.

Badges & Emblems

  • Cut to order premium badging

  • Chrome & Painting by various vendors

  • CNC-machined side & tailgate emblems

Close-up of a car grille featuring a chrome badge with a lion and mountains emblem.

Gauges

Vigilante Signature stock looking gauges with HEMI modern interfacing technology.

Interior of a vintage Jeep vehicle, showing the dashboard with a speedometer, radio controls, and various knobs.

Wiring

  • Custom wiring harness

  • Custom Fuse locations

Firewall fusebox

A vehicle fuse box containing various colored fuses labeled for different functions such as hazard, horn, dome, cigar lighter, fuel pump, gauges, radio, ignition, windshield wipers, headlights, power window, stop, door locks, backup cruise, A/C, heat, electronic fan, and turn signal.

Custom Additions

  1. LED Flasher Ron Francis Wiring (EL-40) No load LED Flasher for LED and Incandescent bulbs up to 25W

  2. Courtesy Lights

  3. Tailgate

  4. Engine fusebox

Engine bay fusebox

The image shows a close-up of an electrical fuse and relay box with various relays and fuses, labeled with numbers for identification.

Mini fuses

  1. F1 :ASD 2 (20A)

  2. F2 : ASO 1 (20A)

  3. F3 : Fuel pump (20A)

  4. F4 : Cooling fan (30A)

  5. F5 : AUX (20A)

  6. F6: Gateway (20A)

  7. F7 : DLC/ECM (20A)

  8. F8 : Starter Solenoid (30A)

  9. F9 : Ignition run/start (20A)

Relays

  • 10 : ASD

  • 11 : Fuel pump

  • 12 : Cooling Fan

  • 13 : Starter

  • 14: Ignition

Angle Up
